CGPath 是 Core Graphics 框架中的一个不可变路径对象(immutable path),用于定义 2D 图形中的几何形状,如线段、曲线和路径轮廓。

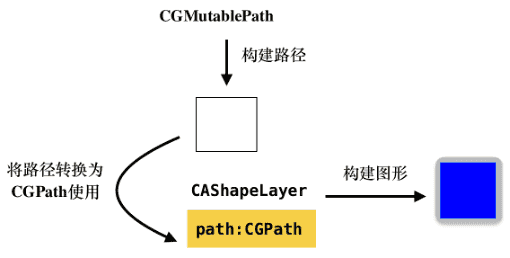

通常使用CGMutablePath创建路径,构建完成后转换为CGPath使用。

例如,创建一个矩形路径:

let mutablePath = CGMutablePath()
mutablePath.addRect(CGRect(x: 20, y: 20, width: 100, height: 100))

可以将 path 赋值给 CAShapeLayer.path,或者在 draw(_:) 方法中使用。

let mutablePath = CGMutablePath()
mutablePath.addRect(CGRect(x: 0, y: 0, width: 100, height: 100))

var shapeLayer = CAShapeLayer()
shapeLayer.path = mutablePath	// 赋值path
shapeLayer.fillColor = NSColor.blue.cgColor
shapeLayer.strokeColor = NSColor.systemBlue.cgColor

CGPath使用场景

1、CAShapeLayer.path:用来显示任意路径图形;

2、draw(_:) 方法中手动绘图;

3、与物理引擎、动画、点击检测结合使用;

4、用于遮罩(mask)、裁剪区域(clip path)。

总结

CGPath 是一个用于定义矢量图形的不可变路径对象,可配合 Core Graphics 或图层系统渲染图形,是绘制曲线和图形的基础。

CGPath和CGMutablePath的关系,CGMutablePath是一个绘画的彩笔,当绘画完成后,就需要保存到相框中(CGPath)。

在绘制路径时,使用CGMutablePath绘制,绘制路径后,再转换为CGPath使用。

因此,CGPath是不可变的,CGMutablePath是CGPath的子类,所以也可以当作CGPath使用。
